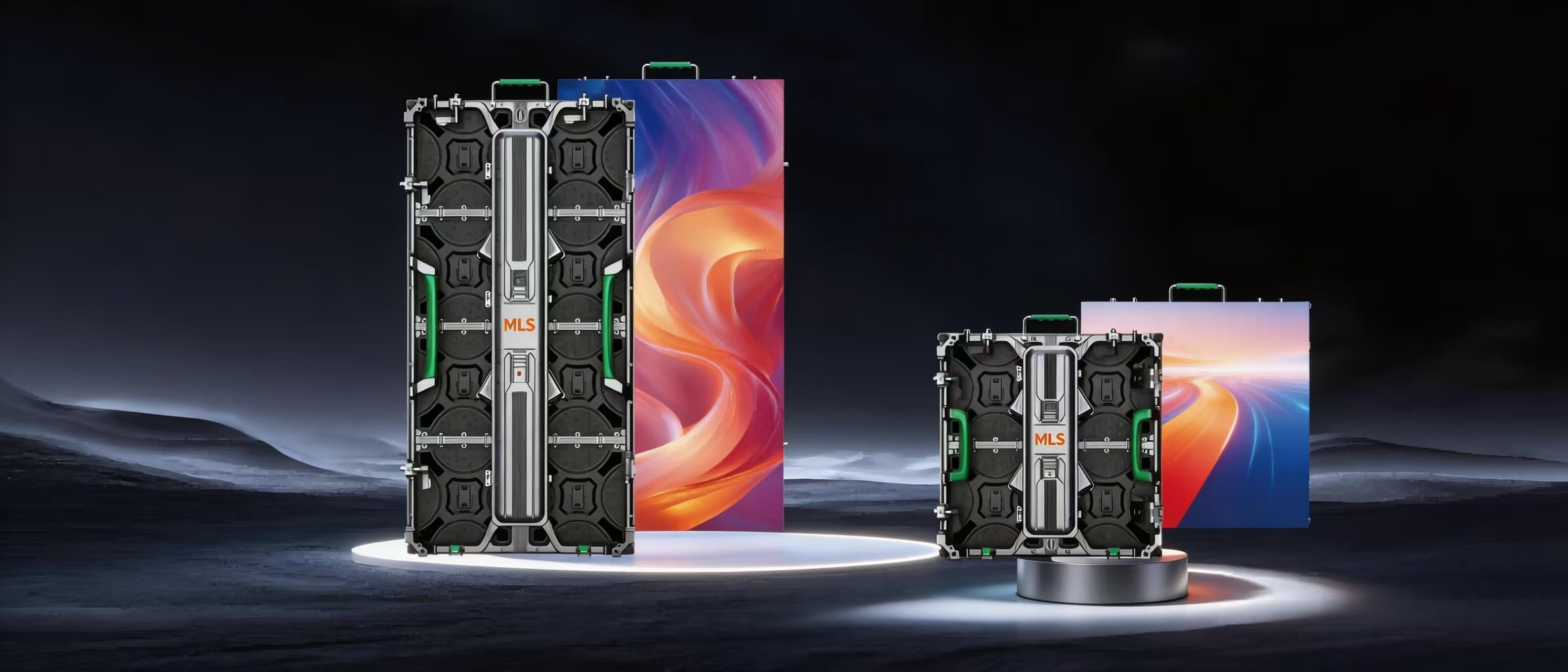

RMC丨Indoor Rental  Soft Connection Cables

RMC丨Indoor Rental Soft Connection Cables

  • -Cost-Effective
  • - Simple Operation
  • - Fast Setup
  • Inquiry

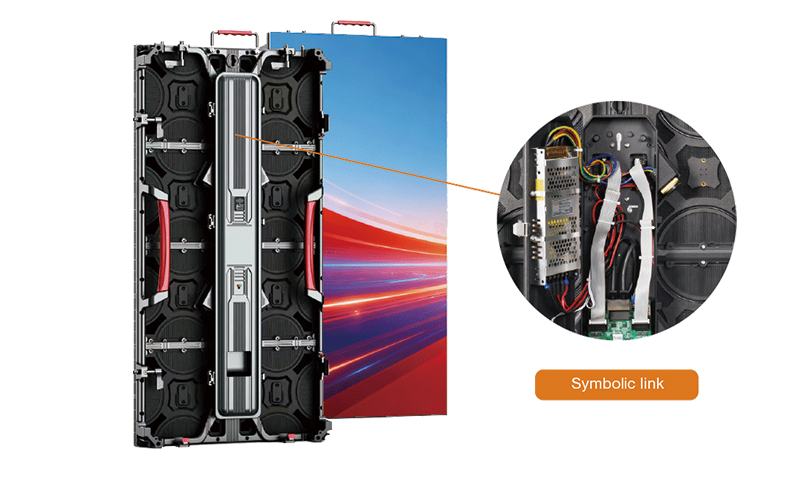

    Die-Cast Aluminum Housing + Internal Connection Design



    Modular design of cabinet body

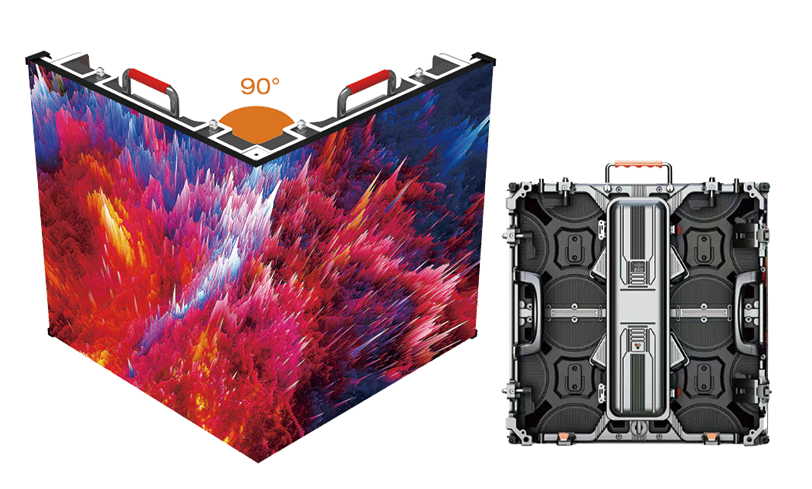

    45 cabinet edge customization easily splicing a right-angle comer

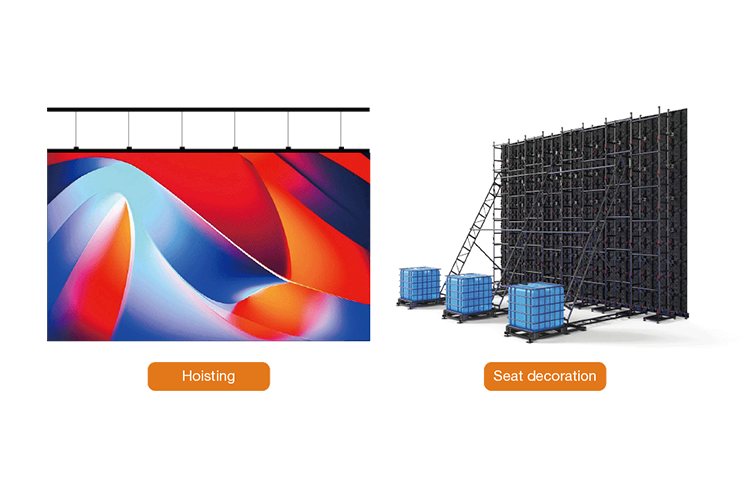

    Installation



    SPECIFICATION

    Parameter P1.56 P1.95 P2.5 P2.604 P2.976 P3.91
    LED Type SMD1212 SMD1515 SMD1515 SMD1515 SMD2121 SMD2121
    Pixel Pitch 1.56mm 1.95mm 2.5mm 2.604mm 2.976mm 3.91mm
    Pixel Density 409600 dots/m² 260000 dots/m² 160000 dots/m² 147400 dots/m² 112800 dots/m² 65500 dots/m²
    Module Dimension(W×H) 250*250mm 250*250mm 250*250mm 250*250mm 250*250mm 250*250mm
    Module Resolution 160*160 dots 128*128 dots 100*100 dots 96*96 dots 84*84 dots 64*64 dots
    Cabinet Dimension(W×H) 500*1000mm/500*500mm 500*1000mm/500*500mm 500*1000mm/500*500mm 500*1000mm/500*500mm 500*1000mm/500*500mm 500*1000mm/500*500mm
    Cabinet Resolution 320*640dots/320*320dots 256*512dots/256*256dots 200*400dots/200*200dots 192*640dots/192*192dots 168*336dots/168*168dots 128*256dots/128*128dots
    Cabinet Weight 7.8/11.6 kg 7.8/11.6 kg 7.8/11.6 kg 7.8/11.6 kg 7.8/11.6 kg 7.8/11.6 kg
    Panel Material Die-cast Aluminum Die-cast Aluminum Die-cast Aluminum Die-cast Aluminum Die-cast Aluminum Die-cast Aluminum
    Refresh Rate 3840Hz 3840Hz 3840Hz 3840Hz 3840Hz 3840Hz
    Brightness 400-800 cd/m² 400-800 cd/m² 400-800 cd/m² 400-800 cd/m² 400-800 cd/m² 400-800 cd/m²
    Gray Scale 12-16 Bit 12-16 Bit 12-16 Bit 12-16 Bit 12-16 Bit 12-16 Bit
    Color Temperature 3000~15000K 3000~15000K 3000~15000K 3000~15000K 3000~15000K 3000~15000K
    Viewing Angle (H/V) 160°/140° 160°/140° 160°/140° 160°/140° 160°/140° 160°/140°
    Contrast Ratio 5000:1 5000:1 5000:1 5000:1 5000:1 5000:1
    Scan Mode 1/32scan 1/32scan 1/25scan 1/32scan 1/28scan 1/16scan
    Power (Max.) 800W/m² 800W/m² 800W/m² 800W/m² 800W/m² 800W/m²
    Power (Avg.) 220W/m² 220W/m² 220W/m² 220W/m² 220W/m² 220W/m²
    Input Voltage AC100~240V (50/60Hz) AC100~240V (50/60Hz) AC100~240V (50/60Hz) AC100~240V (50/60Hz) AC100~240V (50/60Hz) AC100~240V (50/60Hz)
    Operating Temperature -10°C to 40°C -10°C to 40°C -10°C to 40°C -10°C to 40°C -10°C to 40°C -10°C to 40°C
    Operating Humidity 10% - 90% RH 10% - 90% RH 10% - 90% RH 10% - 90% RH 10% - 90% RH 10% - 90% RH
    Storage Temperature -20°C to 60°C -20°C to 60°C -20°C to 60°C -20°C to 60°C -20°C to 60°C -20°C to 60°C
    Storage Humidity 10% - 65% RH 10% - 65% RH 10% - 65% RH 10% - 65% RH 10% - 65% RH 10% - 65% RH
    Maintenance Front & Rear Front & Rear Front & Rear Front & Rear Front & Rear Front & Rear
    LED Lifetime 100000 Hours 100000 Hours 100000 Hours 100000 Hours 100000 Hours 100000 Hours

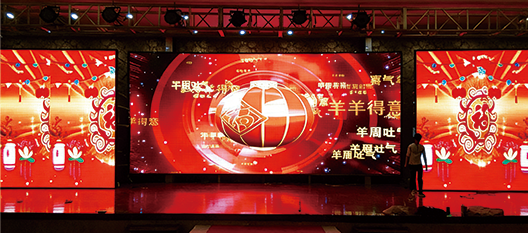

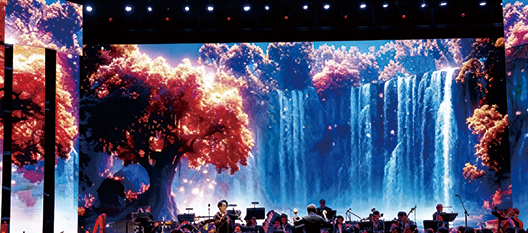

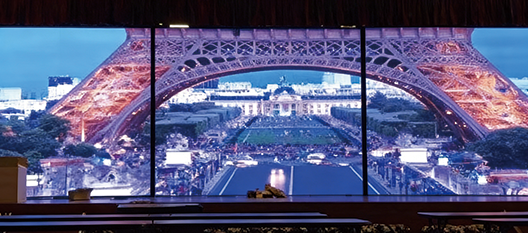

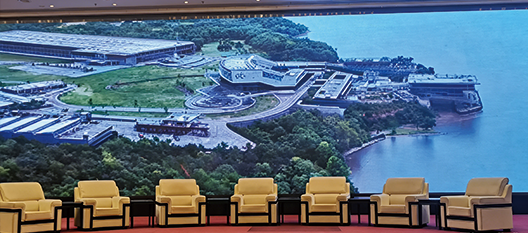

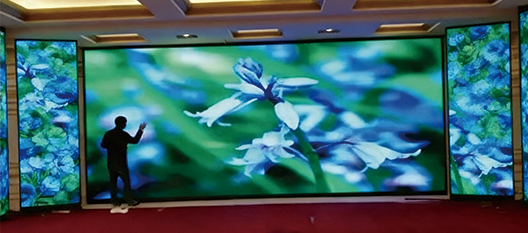

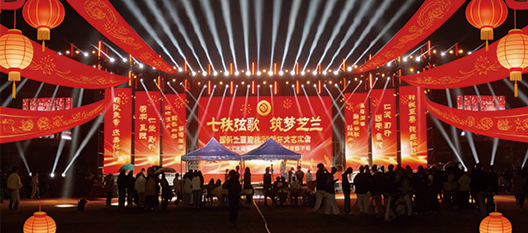

    APPLICATION
