RLC丨Outdoor Rental  Soft Connection Cables

RLC丨Outdoor Rental Soft Connection Cables

  • -High brightness
  • - Waterproof
  • - Simple Operation
  • - Fast Setup
  • Inquiry

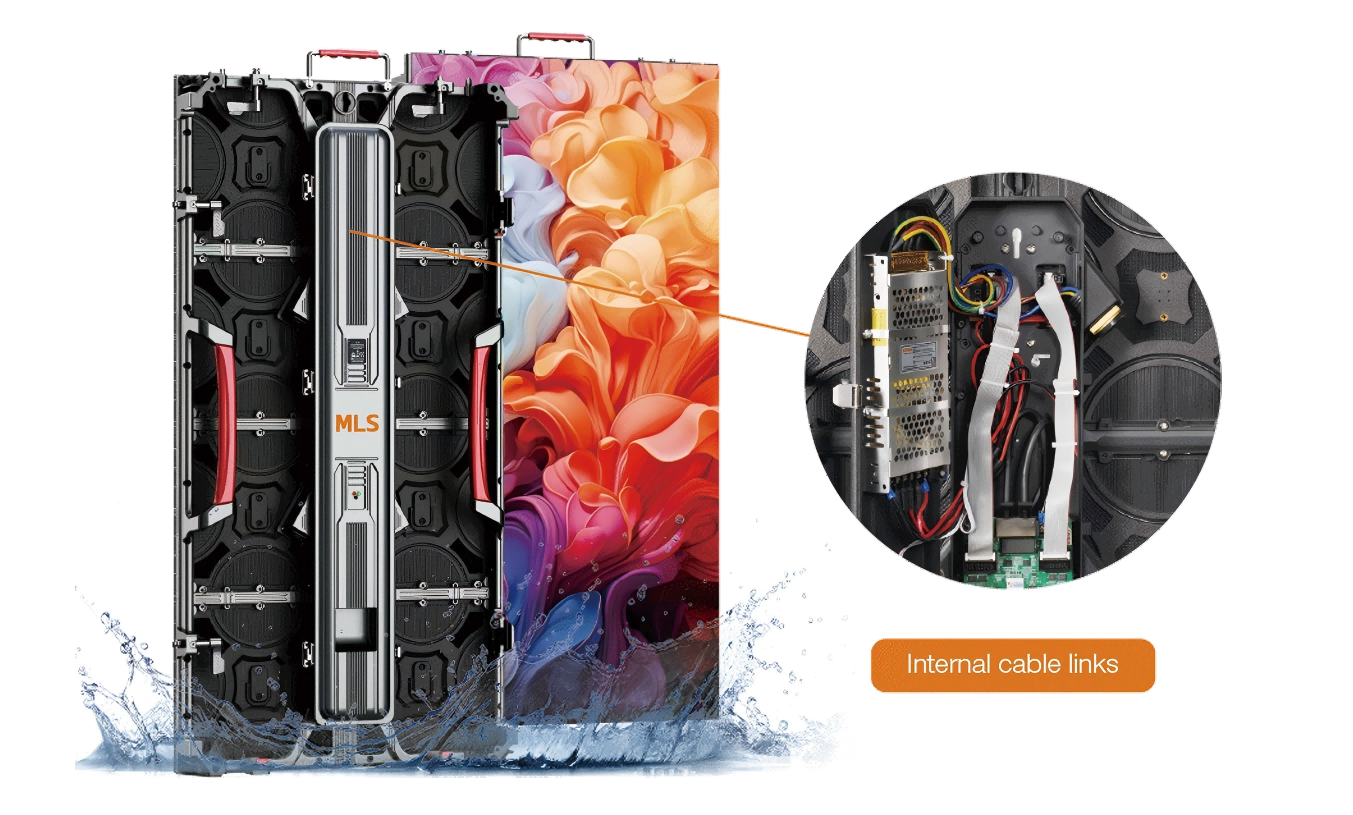

    Die-Cast Aluminum Housing + Internal Connection Design

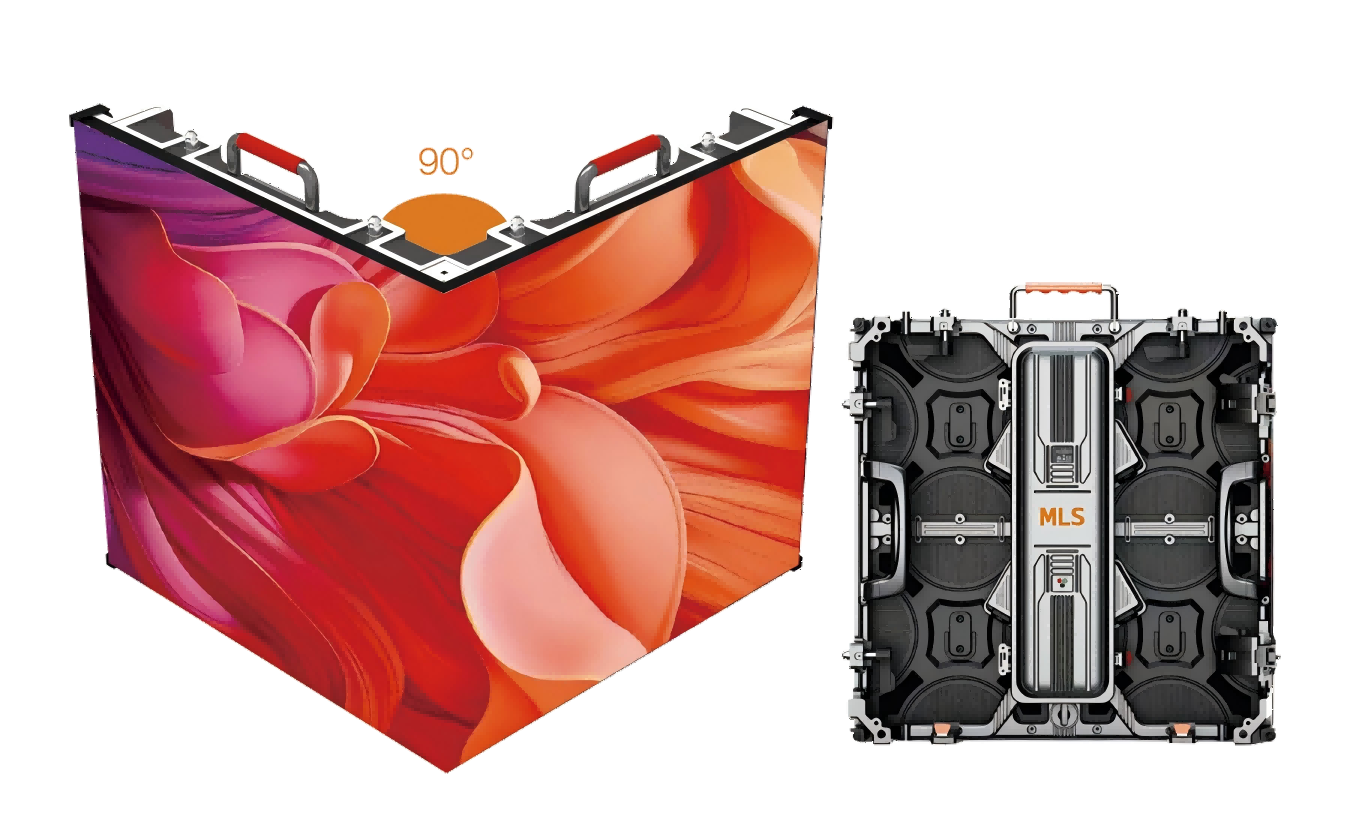

    Modular design of cabinet body



    Maintenance method

    .

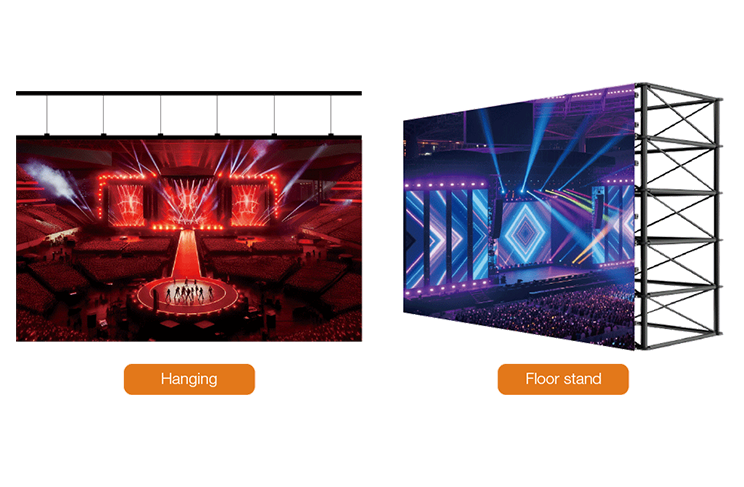

    Installation



    SPECIFICATION

    Parameter P2.6 P2.9 P3.91 P4.8
    LED Type SMD1415 SMD1921 SMD1921 SMD1921
    Pixel Pitch 2.604mm 2.976mm 3.91mm 4.8mm
    Pixel Density 147400 dots/m² 112800 dots/m² 65500 dots/m² 43264 dots/m²
    Module Dimension(W×H) 250*250mm 250*250mm 250*250mm 250*250mm
    Module Resolution 96*96 dots 84*84 dots 64*64 dots 52*52 dots
    Cabinet Dimension(W×H) 500*1000mm/500*500mm 500*1000mm/500*500mm 500*1000mm/500*500mm 500*1000mm/500*500mm
    Cabinet Resolution 192*384dots/192*192dots 168*336dots/168*168dots 128*256dots/128*128dots 104*208dots/104*104dots
    Cabinet Weight 11.5/7.8 kg 11.5/7.8 kg 11.5/7.8 kg 11.5/7.8 kg
    Panel Material Die-cast Aluminum Die-cast Aluminum Die-cast Aluminum Die-cast Aluminum
    Refresh Rate 3840Hz 3840Hz 3840Hz 3840Hz
    Brightness 3500-4500 cd/m² 3500-4500 cd/m² 3500-4500 cd/m² 3500-4500 cd/m²
    Gray Scale 12-16 Bit 12-16 Bit 12-16 Bit 12-16 Bit
    Color Temperature 3000~15000K 3000~15000K 3000~15000K 3000~15000K
    Viewing Angle (H/V) 160°/140° 160°/140° 160°/140° 160°/140°
    Contrast Ratio 5000:1 5000:1 5000:1 5000:1
    Scan Mode 1/24scan 1/21scan 1/16scan 1/13scan
    Power (Max.) 800W/m² 800W/m² 800W/m² 800W/m²
    Power (Avg.) 220W/m² 220W/m² 220W/m² 220W/m²
    Input Voltage AC100~240V (50/60Hz) AC100~240V (50/60Hz) AC100~240V (50/60Hz) AC100~240V (50/60Hz)
    Operating Temperature -10°C to 40°C -10°C to 40°C -10°C to 40°C -10°C to 40°C
    Operating Humidity 10% - 90% RH 10% - 90% RH 10% - 90% RH 10% - 90% RH
    Storage Temperature -20°C to 60°C -20°C to 60°C -20°C to 60°C -20°C to 60°C
    Storage Humidity 10% - 65% RH 10% - 65% RH 10% - 65% RH 10% - 65% RH
    Maintenance Front & Rear Front & Rear Front & Rear Front & Rear
    LED Lifetime 100000 Hours 100000 Hours 100000 Hours 100000 Hours

    APPLICATION
