PMH丨Indoor  600×337.5 SMD LED display

PMH丨Indoor 600×337.5 SMD LED display

  • - 16:9 Golden Ratio
  • - High contrast ratio
  • - High reliability
  • - Ultra-fine pixel pitch
  • - Eye-protective
  • Inquiry

    Multiple models to choose from

    Cabinets seamless splicing to make 2K, 4K, 8K and 16 K ultra high definition LED screen

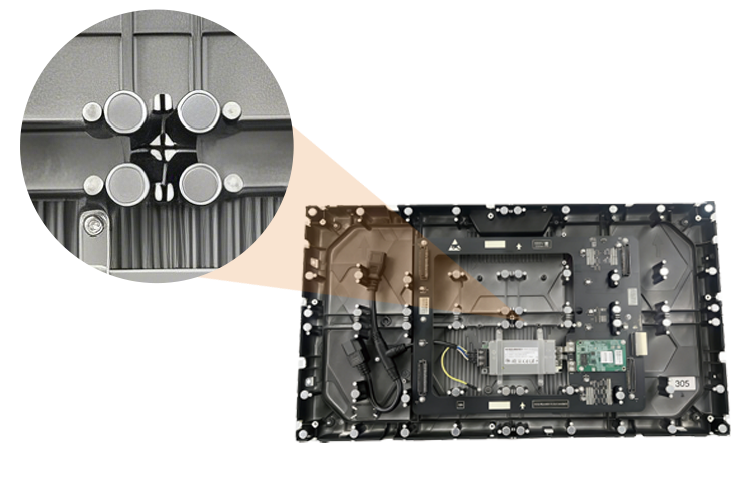

    Seamless splicing

    Adopting an internal connector design, the fatness can be freely adjusted, and the surface of the screen is assmooth as one

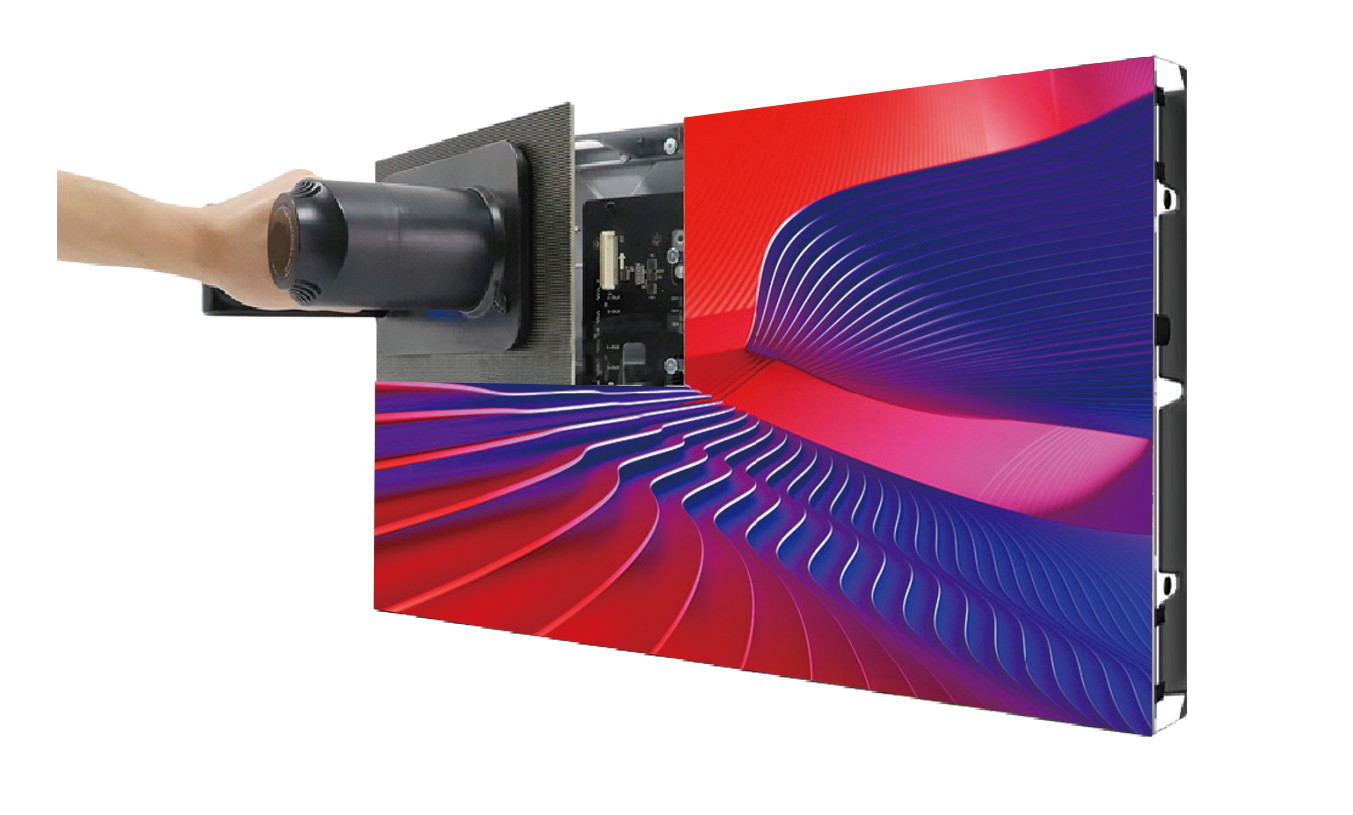

    Front maintenance

    .

    Cabinet Specifications



    SPECIFICATION

    Parameter P1.25 P1.56 P1.87
    LED Type SMD1010 SMD1212 SMD1515
    Pixel Pitch 1.25mm 1.56mm 1.87mm
    Pixel Density 640000 dots/m² 422500 dots/m² 288900 dots/m²
    Module Dimension(W×H) 300*168.75mm 300*168.75mm 300*168.75mm
    Module Resolution 240*135 dots 192*108 dots 160*90 dots
    Module Weight 0.43 kg 0.43 kg 0.43 kg
    Cabinet Dimension(W×H) 640*480mm 640*480mm 640*480mm
    Cabinet Resolution 512*384 dots 418*313 dots 344*258 dots
    Cabinet+Module Weight 5.8 kg 5.8 kg 5.8 kg
    Panel Material Die-cast Aluminum Die-cast Aluminum Die-cast Aluminum
    Refresh Rate 3840/7680Hz 3840/7680Hz 3840/7680Hz
    Brightness 400-800 cd/m² 400-800 cd/m² 400-800 cd/m²
    Gray Scale 12-16 Bit 12-16 Bit 12-16 Bit
    Color Temperature 3000~15000K 3000~15000K 3000~15000K
    Viewing Angle (H/V) 160°/140° 160°/140° 160°/140°
    Optimum Viewing Distance ≥1.8 m ≥2.3 m ≥2.8 m
    Contrast Ratio 5000:1 5000:1 5000:1
    Scan Mode 1/64 scan 1/52 scan 1/43 scan
    IP Rating IP30 IP30 IP30
    Power Consumption (Max.) 550 W/m² 500 W/m² 500 W/m²
    Power Consumption (Avg.) 275 W/m² 250 W/m² 250 W/m²
    Input Voltage AC100~240V (50/60Hz) AC100~240V (50/60Hz) AC100~240V (50/60Hz)
    Operating Temperature -10°C to 40°C -10°C to 40°C -10°C to 40°C
    Operating Humidity 10% - 70% RH 10% - 70% RH 10% - 70% RH
    Storage Temperature -25°C to 50°C -25°C to 50°C -25°C to 50°C
    Storage Humidity 10% - 65% RH 10% - 65% RH 10% - 65% RH
    Maintenance Front Front Front
    LED Lifetime 100000 Hours 100000 Hours 100000 Hours

    APPLICATION
