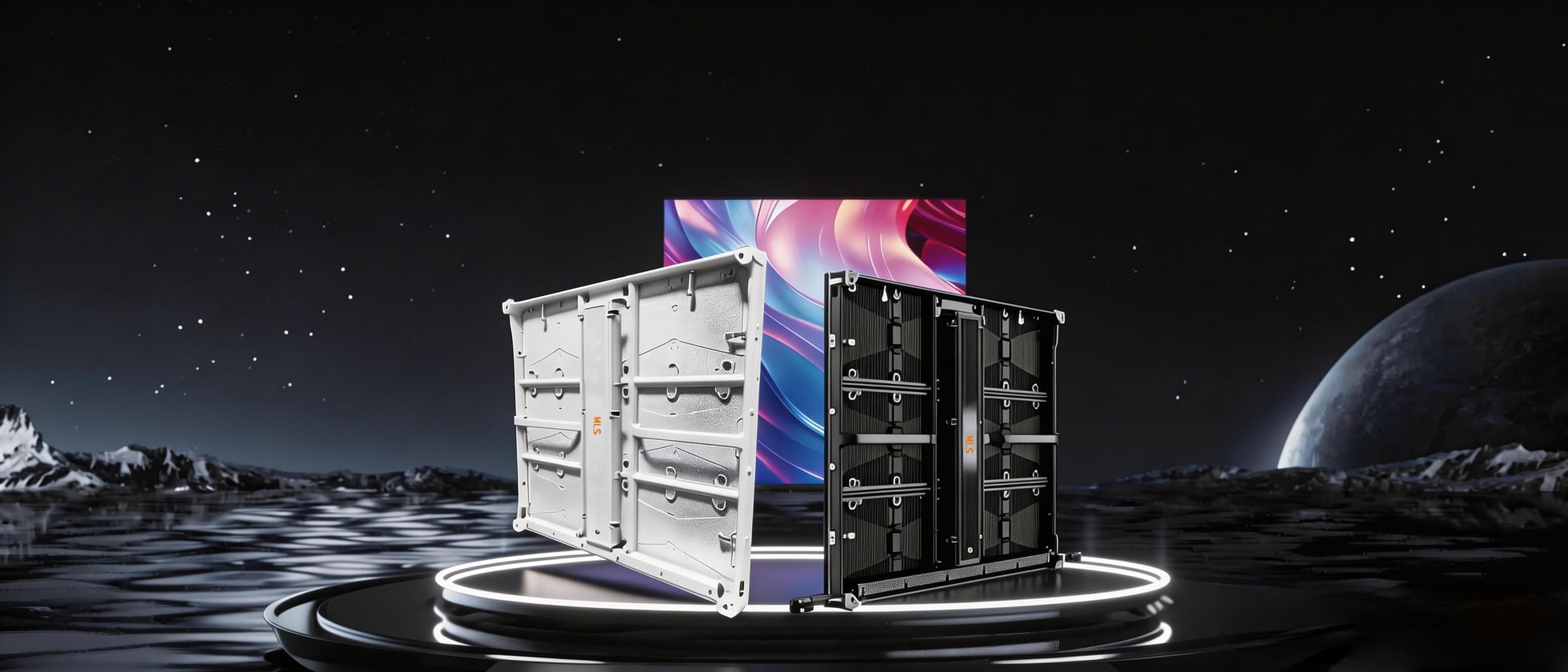

PL丨Outdoor Aluminum Extrusion Cabinet

PL丨Outdoor Aluminum Extrusion Cabinet

  • - IP-Rated
  • - High Heat Dissipation
  • - Front/Rear Maintenance
  • - Lightweight
  • Inquiry

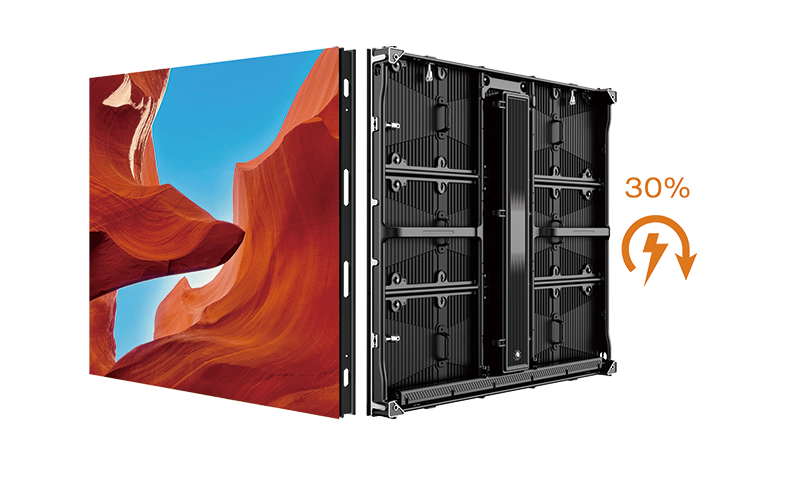

    Enhanced Thermal Management,30% more energy-efficient than traditional products

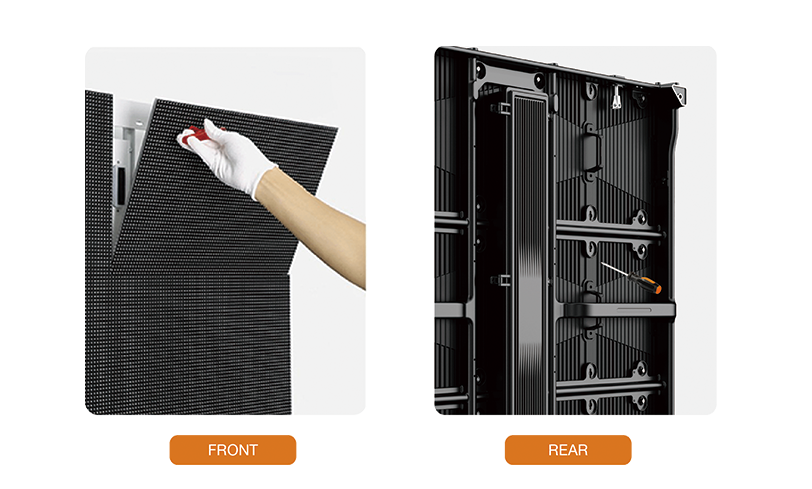

    Full-front and Rear maintenance


    The COB integrated packaging technology has completely overcome the dificulties that SMD cannot overcome withsmall spacing, truly achieving waterproofing, dust prevention, and impact resistance.

    Super strong protection, stable and reliable

    .

    Lightweight Aluminum Construction



    SPECIFICATION

    Parameter P4.44 P5.7 P6.66 P8 P10
    LED Type SMD1921 SMD2727 SMD2727 SMD2727 SMD2727
    Pixel Pitch 4.44mm 5.7mm 6.66mm 8mm 10mm
    Pixel Density

    50635 dots/m²

    30625dots/m²

    22500 dots/m²

    15625 dots/m²

    10000 dots/m²

    Module Dimension(W×H) 480*320mm 480*320mm 480*320mm 480*320mm 480*320mm
    Module Resolution 108*72 dots 84*56 dots 72*48 dots 60*40 dots 48*32 dots
    Cabinet Dimension(W×H) 960*960mm 960*960mm 960*960mm 960*960mm 960*960mm
    Cabinet Resolution 216*216 dots 168*168 dots 144*144 dots 120*120 dots 96*96dots
    Cabinet Weight 27.5kg 27.5kg 27.5kg 27.5kg 27.5kg
    Cabinet Material Aluminum Aluminum Aluminum Aluminum Aluminum
    Refresh Rate 3840Hz 3840Hz 3840Hz 3840Hz 3840Hz
    Brightness 6000 cd/m² 6500 cd/m² 6500 cd/m² 6500 cd/m² 6500 cd/m²
    Gray Scale 12-16 Bit 12-16 Bit 12-16 Bit 12-16 Bit 12-16 Bit
    Color Temperature 3000~15000K 3000~15000K 3000~15000K 3000~15000K 3000~15000K
    Viewing Angle (H/V) 160°/140° 160°/140° 160°/140° 160°/140° 160°/140°
    Scan Mode 1/20 scan 1/16 scan 1/13 scan 1/10 scan 1/8 scan
    Contrast Ratio 6000:1 6000:1 6000:1 6000:1 6000:1
    Power (Max.) 650 W/m² 650 W/m² 650 W/m² 650 W/m² 650 W/m²
    Power (Avg.) 220 W/m² 220 W/m² 220 W/m² 220 W/m² 220 W/m²
    Input Voltage AC100~240V (50/60Hz) AC100~240V (50/60Hz) AC100~240V (50/60Hz) AC100~240V (50/60Hz) AC100~240V (50/60Hz)
    Operating Temperature -10°C to 40°C -10°C to 40°C -10°C to 40°C -10°C to 40°C -10°C to 40°C
    Operating Humidity 10% - 90% RH 10% - 90% RH 10% - 90% RH 10% - 90% RH 10% - 90% RH
    Storage Temperature -20°C to 60°C -20°C to 60°C -20°C to 60°C -20°C to 60°C -20°C to 60°C
    Storage Humidity 10% - 65% RH 10% - 65% RH 10% - 65% RH 10% - 65% RH 10% - 65% RH
    Maintenance Rear Rear Rear Front&Rear Front&Rear
    LED Lifetime 100000 Hours 100000 Hours 100000 Hours 100000 Hours 100000 Hours
