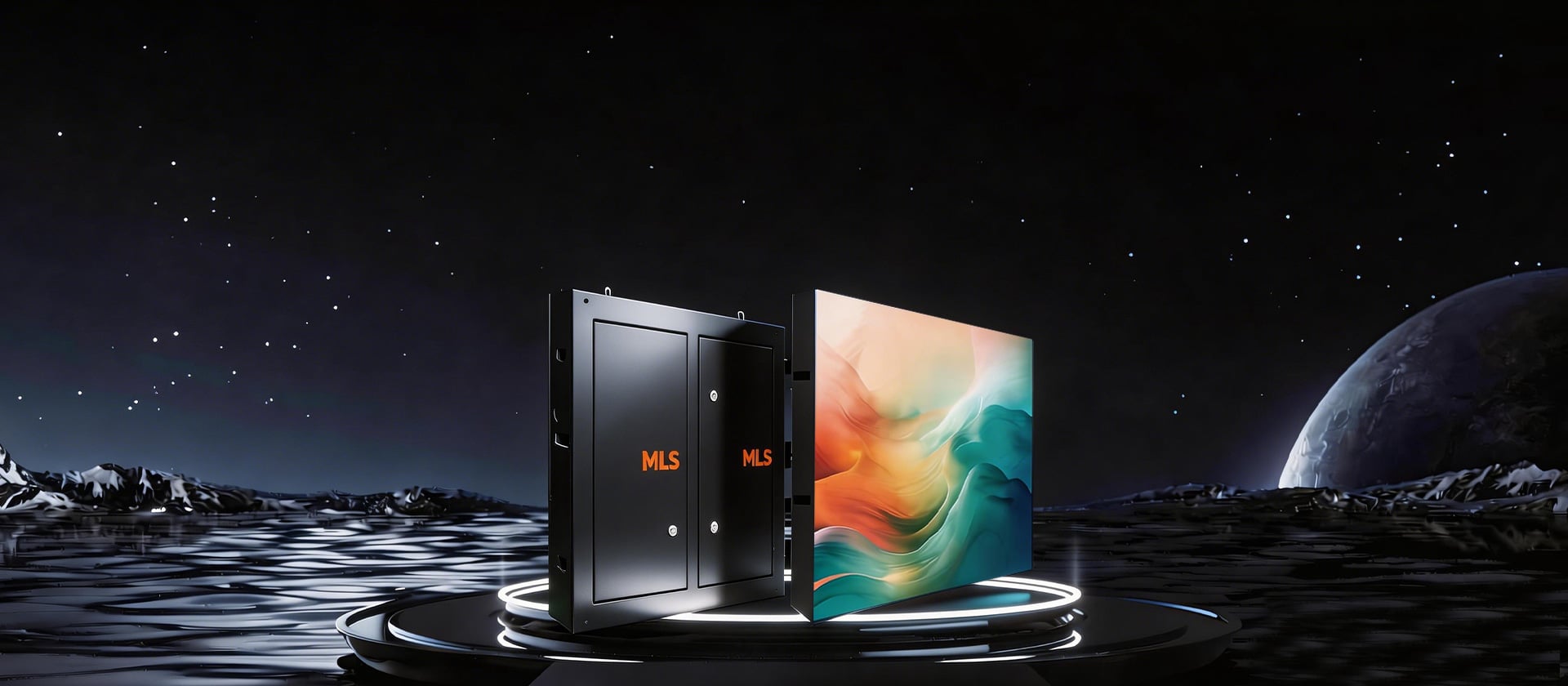

LE丨Outdoor Standard Waterproof Cabinet

LE丨Outdoor Standard Waterproof Cabinet

  • - High Protection
  • - High Heat Dissipation
  • - Front/Rear Maintenance
  • - Installation Method
  • Inquiry

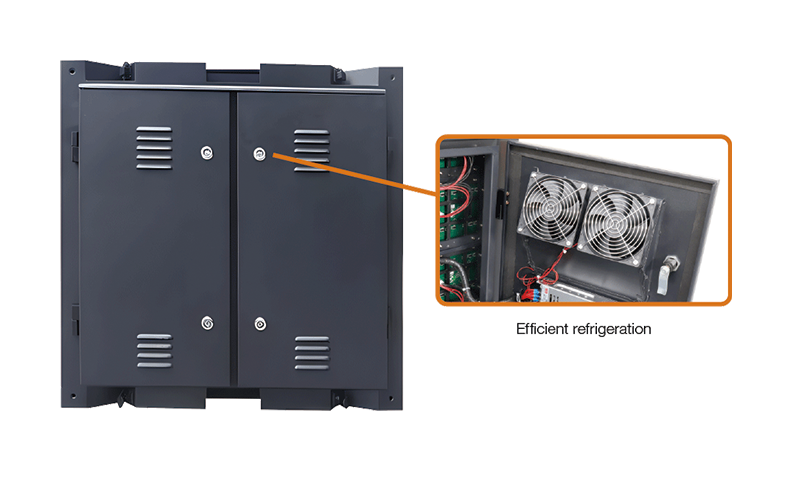

    High Heat Dissipation

    DC fan achieves good heat dissipation effect, stable and efficient.

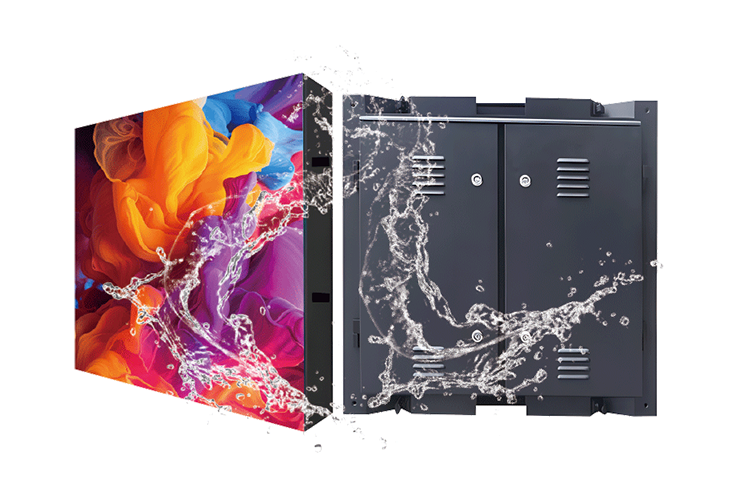

    High Protection

    IP65 for front and IP54 on the back. Good advantages of highv/low temperature resistance,rain/stom resistance, anti-dust and anti-humidity.

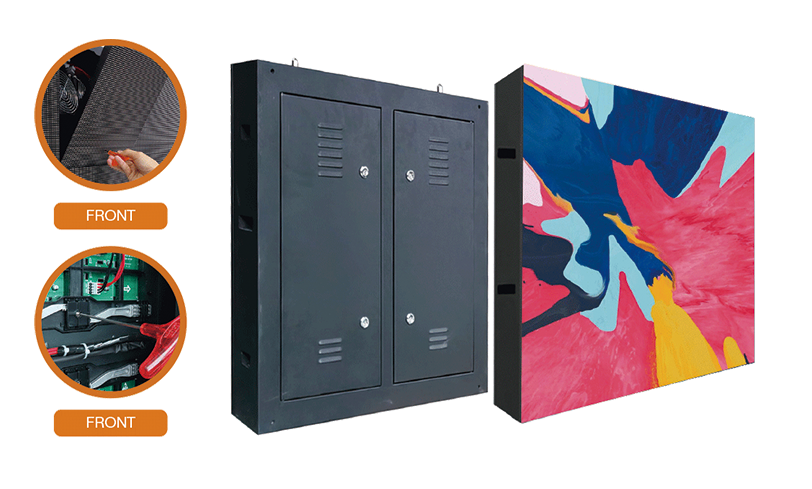

    Front/Rear Maintenance

    Both front and rear maintenance access available for different installation methods. .

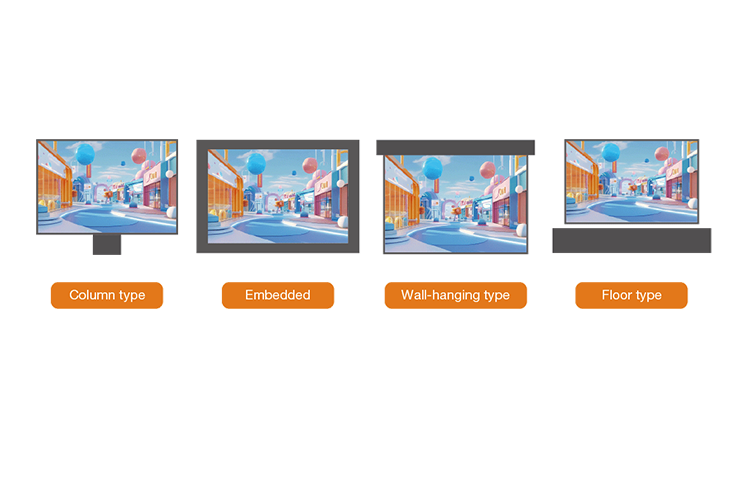

    Installation Method



    SPECIFICATION

    Parameter P2 P2.5 P3 P4 P5
    LED Type SMD1212 SMD1415 SMD1415 SMD1921 SMD1921
    Pixel Pitch 2mm 2.5mm 3mm 4mm 5mm
    Pixel Density

    250000 dots/m²

    160000 dots/m²

    105625 dots/m²

    62500 dots/m²

    40000 dots/m²

    Module Dimension(W×H) 320*160mm 320*160mm 320*160mm 320*160mm 320*160mm
    Module Resolution 160*180 dots 128*64 dots 104*52 dots 80*40 dots 64*32 dots
    Module Weight 0.46kg 0.46kg 0.46kg 0.46kg 0.46kg
    Cabinet Dimension(W×H) 960*960mm 960*960mm 960*960mm 960*960mm 960*960mm
    Cabinet Resolution 480*480 dots 384*384 dots 320*320 dots 240*240 dots 192*192 dots
    Cabinet Weight 35kg 35kg 35kg 35kg 35kg
    Cabinet Material Iron + Waterproof Coating Iron + Waterproof Coating Iron + Waterproof Coating Iron + Waterproof Coating Iron + Waterproof Coating
    Refresh Rate 3840Hz 3840Hz 3840Hz 3840Hz 3840Hz
    Brightness 4500-5000 cd/m² 4500-5000 cd/m² 4500-5000 cd/m² 4500-5000 cd/m² 4500-5000 cd/m²
    Gray Scale 12-16 Bit 12-16 Bit 12-16 Bit 12-16 Bit 12-16 Bit
    Color Temperature 3000~15000K 3000~15000K 3000~15000K 3000~15000K 3000~15000K
    Viewing Angle (H/V) 160°/140° 160°/140° 160°/140° 160°/140° 160°/140°
    Scan Mode 1/20 scan 1/16 scan 1/13 scan 1/10 scan 1/8 scan
    Contrast Ratio 6000:1 6000:1 6000:1 6000:1 6000:1
    Power (Max.) 650 W/m² 650 W/m² 650 W/m² 650 W/m² 650 W/m²
    Power (Avg.) 220 W/m² 220 W/m² 220 W/m² 220 W/m² 220 W/m²
    Input Voltage AC100~240V (50/60Hz) AC100~240V (50/60Hz) AC100~240V (50/60Hz) AC100~240V (50/60Hz) AC100~240V (50/60Hz)
    Operating Temperature -10°C to 40°C -10°C to 40°C -10°C to 40°C -10°C to 40°C -10°C to 40°C
    Operating Humidity 10% - 90% RH 10% - 90% RH 10% - 90% RH 10% - 90% RH 10% - 90% RH
    Storage Temperature -20°C to 60°C -20°C to 60°C -20°C to 60°C -20°C to 60°C -20°C to 60°C
    Storage Humidity 10% - 65% RH 10% - 65% RH 10% - 65% RH 10% - 65% RH 10% - 65% RH
    Maintenance Rear Rear Rear Front&Rear Front&Rear
    LED Lifetime 100000 Hours 100000 Hours 100000 Hours 100000 Hours 100000 Hours
